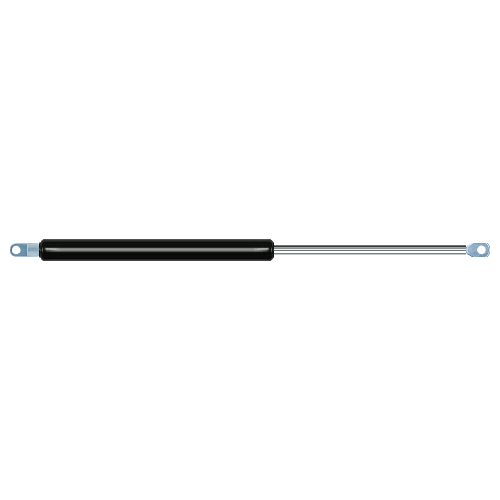

Replacement for Airax Rayflex 518547 80-1250N

$34.54




Replacement gas spring for the Airax Rayflex 518547 80-1250 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 20mm.
  • Clear
    This gas spring is also known as 5000518547, 518547.00.
    Airax Rayflex 518547
    AS24AR16_8

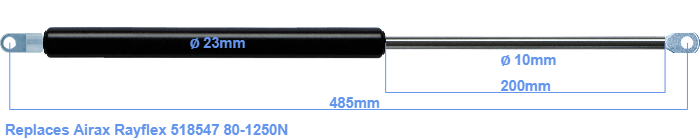

    This gas spring has a cylinder diameter of 23 mm. The diameter of the rod is 10 millimeter. The stroke (the retracting part) has a length of 200 mm. The total length of this replacement gas spring is 485 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. This replacement gas spring has a force of 80-1250 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (80-1250 N) and dimensions are nearly identical to the original.
