Replacement for Vapsint ATS F50 B01 1100 500 150-2500N
$90.40
Replacement gas spring for the Vapsint ATS F50 B01 1100 500 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as Brimotech 10520009.

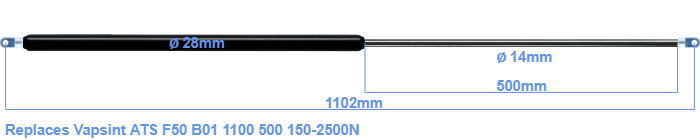

The diameter of the cylinder of this gas spring is 28 mm. The diameter of the rod totals 14 mm. The stroke is 500 millimeter long. The total length of this replacement is exactly 1102 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 1048 mm. The force of this replacement is 150-2500 Newton. This is not an original gas spring produced by Vapsint, but it can replace a Vapsint gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
