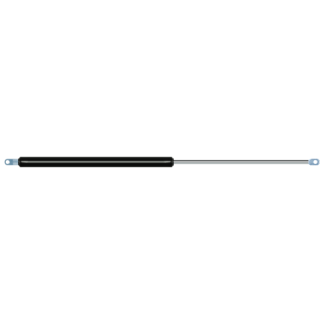

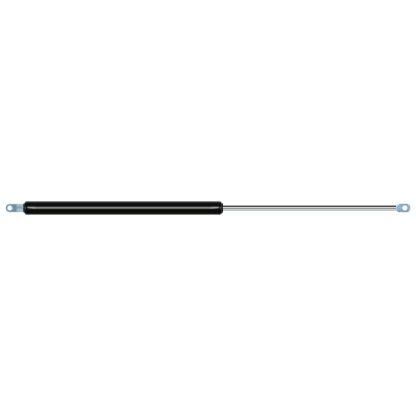

Replacement for Vapsint APS R20 Z10 685 300 80-1250N

$43.28




Replacement gas spring for the Vapsint APS R20 Z10 685 300 80-1250 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


  • View this gas spring in our configurator.
    This gas spring is also known as Brimotech 10420005.
    Vapsint APS R20 Z10 685 300
    AS24AR16_8


    The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke is 300 millimeter long. The total length of this replacement is exactly 685 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 645 mm. The force of this replacement gas spring is 80-1250 Newton. This is not an original gas spring from Vapsint, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions nearly equal.
