Replacement for Vapsint AMS R20 Z10 525 220 50-800N

$56.25




Replacement gas spring for the Vapsint AMS R20 Z10 525 220 50-800 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.
This gas spring is also known as Brimotech 10320012.
Vapsint AMS R20 Z10 525 220
AS24AR16_8

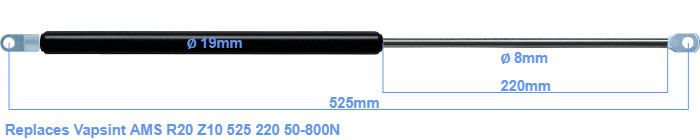

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The rod (the chrome part) is 220 mm long. The total length of this gas strut is 525 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). This replacement gas spring (AMS R20 Z10 525 220) has a force of 50-800 Newton (N). This gas spring can replace a Vapsint gas spring, but is not an orignal Vapsint one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
