Replacement for Vapsint 156.265.20 200N

$28.75




Replacement gas spring for the Vapsint 156.265.20 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
This gas spring is also known as 156.265.20. RS3 - TZ2.
Vapsint 156.265.20
AX16

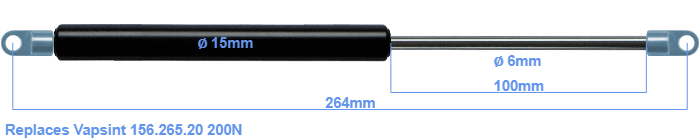

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod is 6 millimeter. The stroke is 100 millimeter long. The total length of this replacement is exactly 264 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 232 millimeter. The force of this replacement is 200 Newton. This is not an original gas spring from Vapsint, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
