Replacement for Vapsint 156.265.22 220N

$28.75




Replacement gas spring for the Vapsint 156.265.22 220 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
This gas spring is also known as 156.265.22. RS3 - TZ2.
Vapsint 156.265.22
AX16

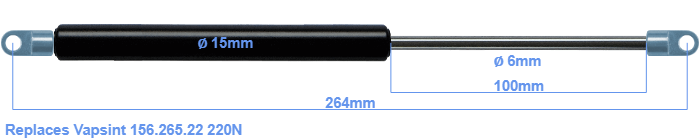

The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The chrome part is called the rod. It has a length of 100 mm. The total length of this replacement is exactly 264 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 232 mm. This replacement gas spring has a force of 220 Newton. This is not an original gas spring from Vapsint, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
