Replacement for Vapsint 156.145.20 200N
$41.12
Replacement gas spring for the Vapsint 156.145.20 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.
Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
View this gas spring in our configurator. This gas spring is also known as 156.145.20. RS3 - TZ2.

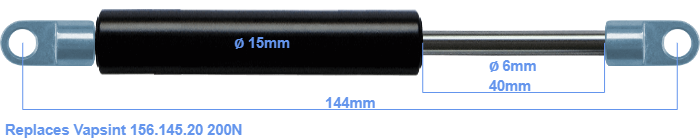

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke is 40 millimeter long. The total length of this replacement gas spring is 144 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 112 mm. This replacement gas spring has a force of 200 Newton. This is not an original gas spring from Vapsint, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
