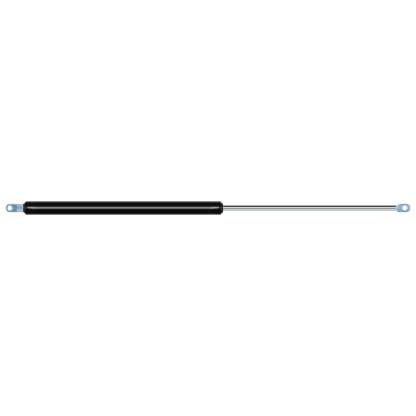

Replacement for Titgemeyer GETO Lift 605 090 1150N

$43.28



Replacement gas spring for the Titgemeyer GETO Lift 605 090 1150 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 090 1150N quantity

Add to basket

This gas spring is also known as 605090000.



The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 300 mm. The total length of this replacement gas spring is 685 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 645 mm. The force of this replacement is 1150 Newton. This is not an original gas spring from Titgemeyer GETO Lift, but a so called replacement gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
