Replacement for Titgemeyer GETO Lift 605 067 750N

$41.79



Replacement gas spring for the Titgemeyer GETO Lift 605 067 750 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 067 750N quantity

Add to basket

This gas spring is also known as 605067000.

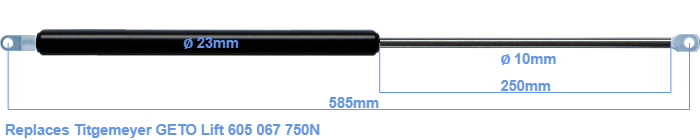

The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke is 250 millimeter long. The total length of this replacement is 585 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. The force of this replacement gas spring is 750 Newton. This gas spring can replace a Titgemeyer GETO Lift gas spring, but is not an orignal Titgemeyer GETO Lift one. This a gas spring with the brand HAHN. The force (750 N) and dimensions are almost entirely identical to the original.
