Replacement for Stobo 4100145- 600N

$36.31




Replacement gas spring for the Stobo 4100145- 600 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

Stobo 4100145-
AR19

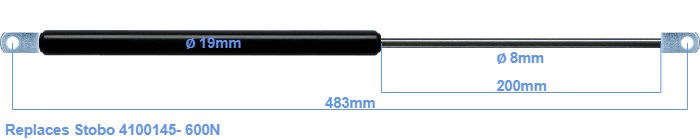

This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 200 mm. The total length of this replacement gas spring is 483 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 445 mm. This replacement gas spring (4100145-) has a force of 600 Newton (N). This is not an official Stobo gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (600 N) and dimensions are almost identical to the original.
