Replacement for Stobo 4100057- 100N

$29.14




Replacement gas spring for the Stobo 4100057- 100 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Stobo 4100057-
AX16

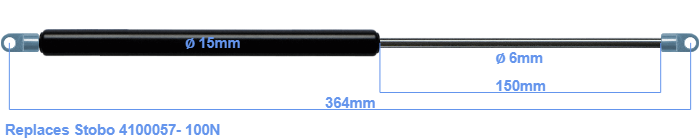

The diameter of the cylinder of this gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement is exactly 364 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 332 mm. The force of this replacement gas spring is 100 Newton. Attention: this is not an official Stobo gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
