Replacement for Stobo 4100022- 100N

$28.55




Replacement gas spring for the Stobo 4100022- 100 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Stobo 4100022-
AX16

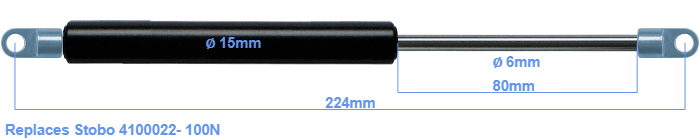

The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 80 mm. The total length of this replacement gas spring is 224 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 192 millimeter. The force of this replacement is 100 Newton. This is not an original gas spring from Stobo, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
