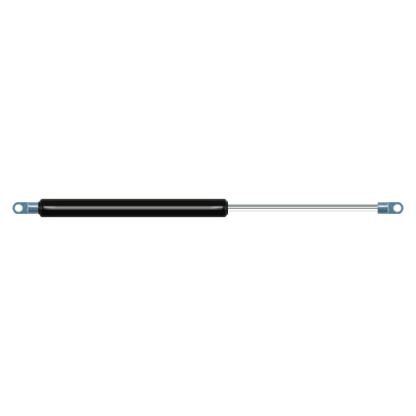

Replacement for Stobo 4100052- 100N

$28.94




Replacement gas spring for the Stobo 4100052- 100 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Stobo 4100052-
AX16


This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke of the gas spring is 120 millimeter. The total length of this replacement is 304 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 272 millimeter. The force of this replacement gas spring is 100 Newton. Attention: this is not an official Stobo gas spring, but a replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
