Replacement for Stabilus Lift-O-Mat 9726UA 0075N

$31.35

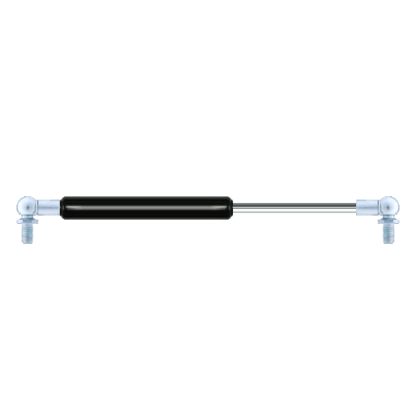

Replacement gas spring for the Stabilus Lift-O-Mat 9726UA 0075N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as CA9726UA.
Stabilus Lift-O-Mat 9726UA
WX22
elbow ball removal

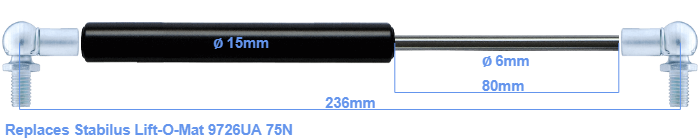

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 80 mm. The total length of this gas strut is 236 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). This replacement gas spring (9726UA) has a force of 75 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
