Replacement for Stabilus Lift-O-Mat 8674DJ 0400N

$31.74




Replacement gas spring for the Stabilus Lift-O-Mat 8674DJ 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as CA8674DJ.
WX22
elbow ball removal

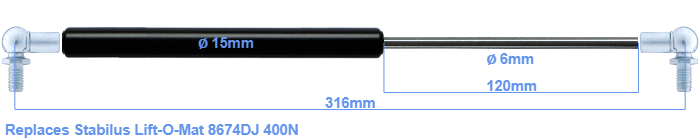

The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke is 120 millimeter long. The total length of this gas strut is 316 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 272 millimeter. The force of this replacement gas spring is 400 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. The force (400 N) and dimensions are identical to the original.
