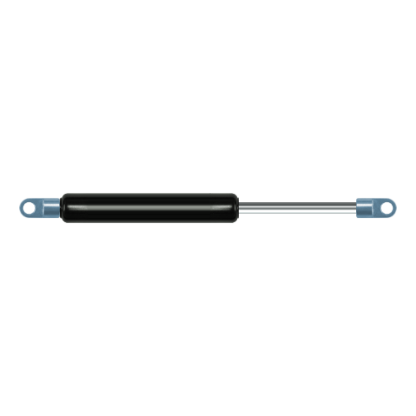

Replacement for Stabilus Lift-O-Mat 8611TX 0200N

$33.10



Replacement gas spring for the Stabilus Lift-O-Mat 8611TX 0200N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 8611TX 0200N quantity

Add to basket

This gas spring is also known as Salice Lift-O-Mat 8611TX, CA8611TX.



This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The stroke is 60 millimeter long. The total length of this replacement gas spring is 184 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 152 millimeter. The force of this replacement gas spring is 200 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
