Replacement for Stabilus Lift-O-Mat 6214YF 0150N

$40.11




Replacement gas spring for the Stabilus Lift-O-Mat 6214YF 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA6214YF.
Stabilus Lift-O-Mat 6214YF
WG20
elbow ball removal

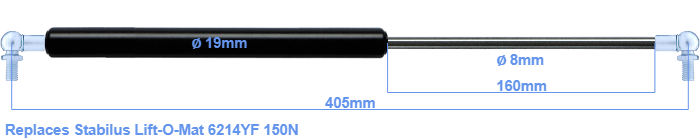

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The chrome part is called the rod. It has a length of 160 mm. In total, the length is 405 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 365 millimeter. This gas spring (6214YF) has a force of 150 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
