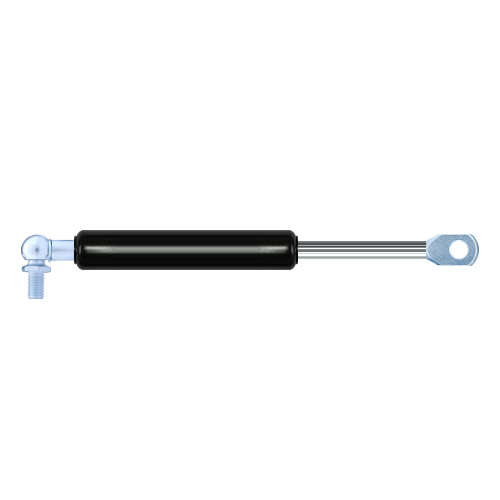

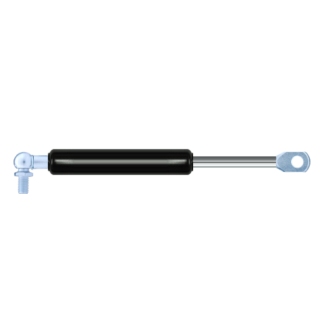

Replacement for Stabilus Lift-O-Mat 591955 0200N
Replacement gas spring for the Stabilus Lift-O-Mat 591955 0200N. Mounting part tube: This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as CA591955.
The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The chrome part is called the rod. It has a length of 60 mm. In total, the length is 199 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 165 mm long (thread to thread). The force of this replacement gas spring is 200 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
