Replacement for Stabilus Lift-O-Mat 5035DN 0300N

$31.74




Replacement gas spring for the Stabilus Lift-O-Mat 5035DN 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA5035DN.
Stabilus Lift-O-Mat 5035DN
WX22
elbow ball removal

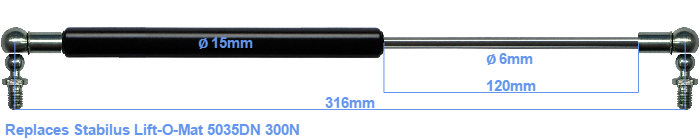

The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod totals 6 mm. The chrome part is called the rod. It has a length of 120 mm. The total length of this gas strut is 316 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 272 millimeter. This replacement gas spring (5035DN) has a force of 300 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (300 N) and dimensions are identical to the original.
