Replacement for Stabilus Lift-O-Mat 5012DN 0400N

$31.55




Replacement gas spring for the Stabilus Lift-O-Mat 5012DN 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA5012DN.
Stabilus Lift-O-Mat 5012DN
WX22
elbow ball removal

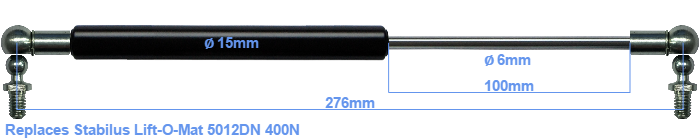

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke of the gas spring is 100 millimeter. The total length of this replacement is 276 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 232 millimeter. The force of this replacement gas spring is 400 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions equal.
