Replacement for Stabilus Lift-O-Mat 4859DO 0400N
$44.38
Replacement gas spring for the Stabilus Lift-O-Mat 4859DO 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA4859DO.

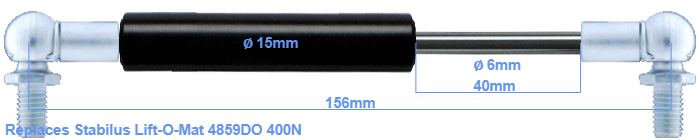

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 40 mm. In total, the length is 156 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 112 mm long (thread to thread). This replacement gas spring has a force of 400 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
