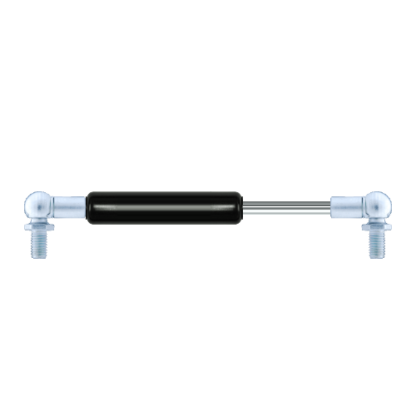

Replacement for Stabilus Lift-O-Mat 4853DR 0250N

$44.38




Replacement gas spring for the Stabilus Lift-O-Mat 4853DR 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA4853DR.
Stabilus Lift-O-Mat 4853DR
WX22
elbow ball removal

This gas spring has a cylinder diameter of 15 mm. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 40 mm. The total length of this replacement gas spring is 156 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 112 millimeter. The force of this replacement gas spring is 250 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions equal.
