Replacement for Stabilus Lift-O-Mat 4028XN 0600N



Replacement gas spring for the Stabilus Lift-O-Mat 4028XN 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA4028XN.
Stabilus Lift-O-Mat 4028XN
elbow ball removal

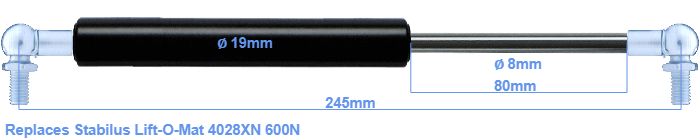

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The rod (the chrome part) is 80 mm long. In total, the length is 245 millimeter. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 205 mm. This gas spring (4028XN) has a force of 600 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. The force (600 N) and dimensions are identical to the original.
