Replacement for Stabilus Lift-O-Mat 3665AV 0250N

$41.29




Replacement gas spring for the Stabilus Lift-O-Mat 3665AV 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA3665AV.
Stabilus Lift-O-Mat 3665AV
WG20
elbow ball removal

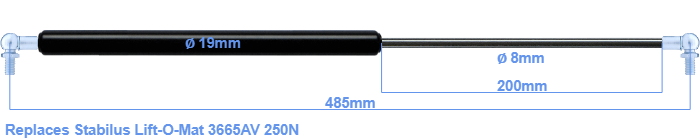

The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The chrome part is called the rod. It has a length of 200 mm. The total length of this replacement gas spring is 485 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 445 millimeter. This replacement gas spring (3665AV) has a force of 250 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
