Replacement for Stabilus Lift-O-Mat 287571 0280N

$42.56



Replacement gas spring for the Stabilus Lift-O-Mat 287571 0280N. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 5mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 5mm.

This replacement gas spring is 4mm shorter than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 287571 0280N quantity

Add to basket

This gas spring is also known as CA287571.

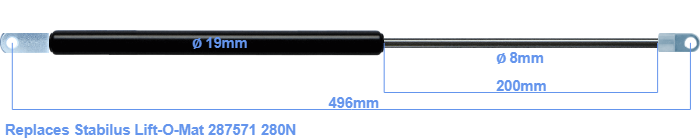

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 200 mm. The total length of this replacement is 496 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). The force of this replacement is 280 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (280 N) and dimensions are almost entirely identical to the original.
