Replacement for Stabilus Lift-O-Mat 2655NY 0250N

$53.02




Replacement gas spring for the Stabilus Lift-O-Mat 2655NY 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as CA2655NY.
WG20
elbow ball removal

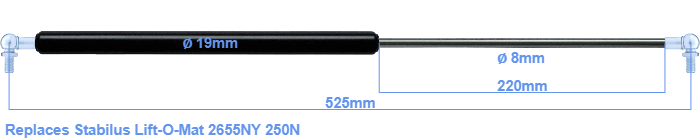

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 220 mm long. In total, the length is 525 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 485 millimeter. This replacement gas spring (2655NY) has a force of 250 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
