Replacement for Stabilus Lift-O-Mat 2645ND 0500N
Replacement gas spring for the Stabilus Lift-O-Mat 2645ND 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn. This gas spring is also known as CA2645ND.

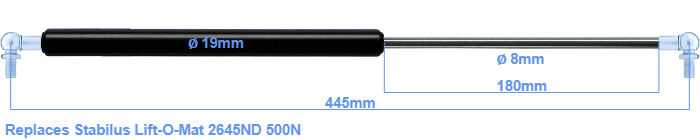

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The stroke is 180 millimeter long. The total length of this replacement gas spring is 445 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). The force of this replacement is 500 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (500 N) and dimensions are identical to the original.
