Replacement for Stabilus Lift-O-Mat 2643NN 0350N

$51.51




Replacement gas spring for the Stabilus Lift-O-Mat 2643NN 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA2643NN.
Stabilus Lift-O-Mat 2643NN
WG20
elbow ball removal

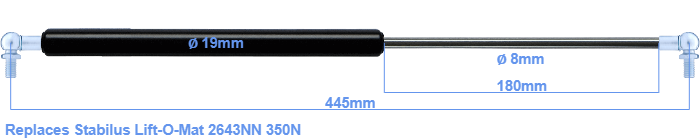

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The chrome part is called the rod. It has a length of 180 mm. The total length of this gas strut is 445 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). This replacement gas spring has a force of 350 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (350 N) and dimensions are identical to the original.
