Replacement for Stabilus Lift-O-Mat 2639NQ 0200N

$51.51




Replacement gas spring for the Stabilus Lift-O-Mat 2639NQ 0200N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as CA2639NQ.
WG20
elbow ball removal

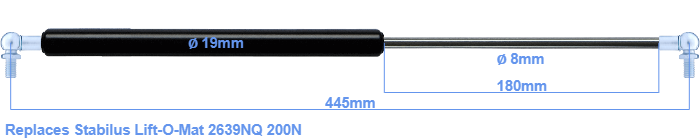

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 180 mm. The total length of this replacement is exactly 445 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). This gas spring (2639NQ) has a force of 200 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
