Replacement for Stabilus Lift-O-Mat 262234 0200N

$37.65




Replacement gas spring for the Stabilus Lift-O-Mat 262234 0200N. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 5mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 5mm.
  • This replacement gas spring is 4mm shorter than the original gas spring. In general, this will not cause any problems.
  • This gas spring is also known as CA262234.
    AR27AS24

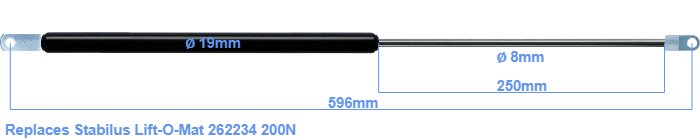

    The diameter of the cylinder of this gas spring is 19 millimeters. The cross section of the rod is 8 mm. The stroke is 250 millimeter long. In total, the length is 596 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. This replacement gas spring has a force of 200 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This is a Stabilus Industry Line gas spring. The force (200 N) and dimensions are close to identical to the original.
