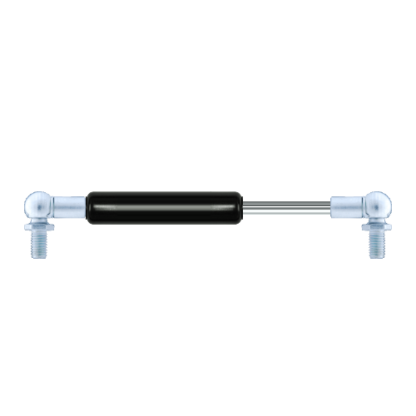

Replacement for Stabilus Lift-O-Mat 2608NM 0150N

$38.05




Replacement gas spring for the Stabilus Lift-O-Mat 2608NM 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA2608NM.
Stabilus Lift-O-Mat 2608NM
WX22
elbow ball removal

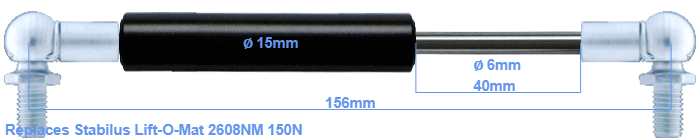

The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The rod (the chrome part) is 40 mm long. In total, the length is 156 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 112 mm long (thread to thread). This replacement gas spring has a force of 150 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
