Replacement for Stabilus Lift-O-Mat 2607NR 0100N

$38.05




Replacement gas spring for the Stabilus Lift-O-Mat 2607NR 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA2607NR.
Stabilus Lift-O-Mat 2607NR
WX22
elbow ball removal

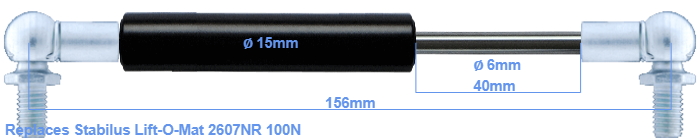

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 40 mm. The total length of this gas strut is 156 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 112 mm long (thread to thread). This gas spring (2607NR) has a force of 100 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
