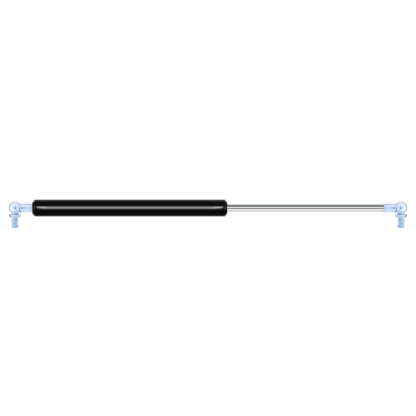

Replacement for Stabilus Lift-O-Mat 251003 0320N
Replacement gas spring for the Stabilus Lift-O-Mat 251003 0320N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
The diameter of the tube of this replacement gas spring is 19mm instead of 18mm. This gas spring is also known as CA251003.

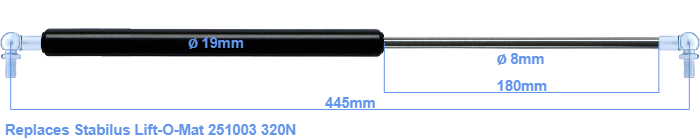

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The stroke is 180 millimeter long. The total length of this replacement gas spring is 445 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 405 mm. This gas spring (251003) has a force of 320 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
