Replacement for Stabilus Lift-O-Mat 234397 0750N

$38.56




Replacement gas spring for the Stabilus Lift-O-Mat 234397 0750N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as CA234397.
    Stabilus Lift-O-Mat 234397
    AR19

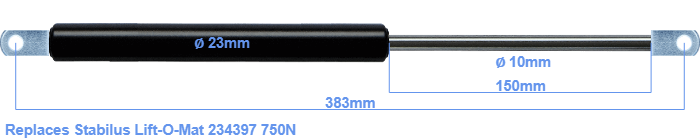

    The diameter of the black cylinder of this gas spring is 23 millimeter. The rod has a diameter of 10 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement is 383 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 345 mm. This replacement gas spring has a force of 750 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
    Category:
    Replacement for Stabilus Lift-O-Mat 234397 0750N
