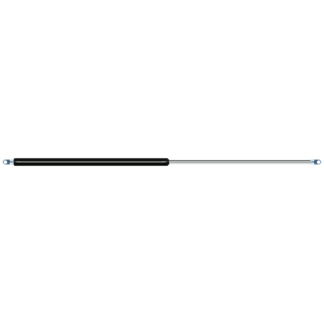

Replacement for Stabilus Lift-O-Mat 2111LD 0800N

$90.40



Replacement gas spring for the Stabilus Lift-O-Mat 2111LD 0800N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2111LD 0800N quantity

Add to basket

This gas spring is also known as CA2111LD.

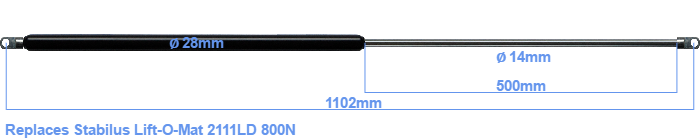

The bore of the house of this replacement gas spring is 28 mm. The rod has a diameter of 14 mm. The stroke (the retracting part) has a length of 500 mm. The total length of this replacement is 1102 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 1048 mm. The force of this replacement is 800 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions almost equal.
