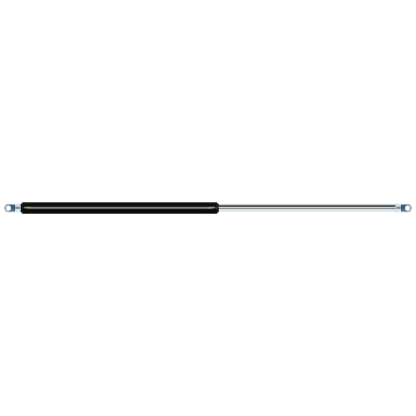

Replacement for Stabilus Lift-O-Mat 2072LX 1900N

$70.57



Replacement gas spring for the Stabilus Lift-O-Mat 2072LX 1900N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2072LX 1900N quantity

Add to basket

This gas spring is also known as CA2072LX.

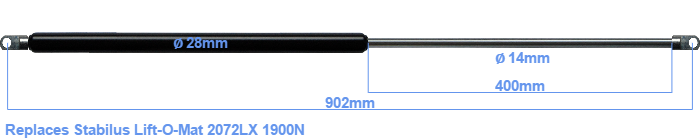

The bore of the house of this replacement gas spring is 28 mm. The diameter of the rod is 14 millimeter. The stroke of the gas spring is 400 millimeter. The total length of this replacement gas spring is 902 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 848 millimeter. This gas spring (2072LX) has a force of 1900 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
