Replacement for Stabilus Lift-O-Mat 2043LJ 1500N

$39.74

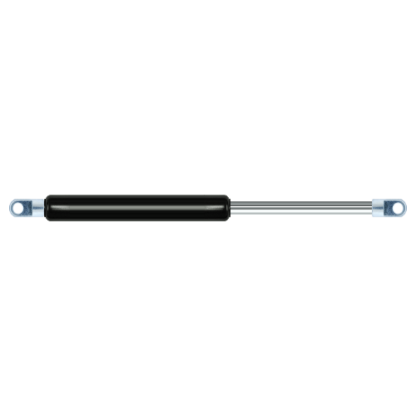

Replacement gas spring for the Stabilus Lift-O-Mat 2043LJ 1500N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.
  • This gas spring is also known as CA2043LJ.
    Stabilus Lift-O-Mat 2043LJ
    AU27


    The diameter of the cylinder of this gas spring is 28 millimeters. The diameter of the rod is 14 millimeter. The stroke of the gas spring is 150 millimeter. The total length of this replacement gas spring is 402 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 348 mm long (thread to thread). This gas spring (2043LJ) has a force of 1500 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are close to equal.
