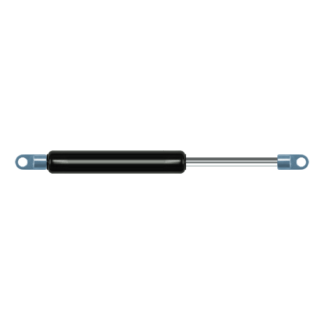

Replacement for Stabilus Lift-O-Mat 192880 0250N

$28.37




Replacement gas spring for the Stabilus Lift-O-Mat 192880 0250N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as CA192880.
Stabilus Lift-O-Mat 192880
AX16


The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke is 60 millimeter long. The total length of this gas strut is 184 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 152 millimeter. This replacement gas spring has a force of 250 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions nearly equal.
