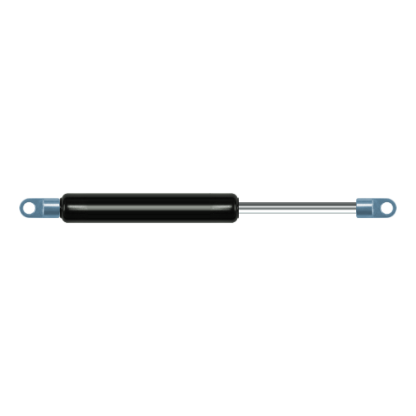

Replacement for Stabilus Lift-O-Mat 192856 0100N

$28.37




Replacement gas spring for the Stabilus Lift-O-Mat 192856 0100N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Hahn.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as CA192856.
Stabilus Lift-O-Mat 192856
AX16


The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 60 mm. The total length of this gas strut is 184 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 152 mm. This replacement gas spring has a force of 100 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas springs has the brand Stabilus Industry Line. Nevertheless, the force and dimensions almost entirely equal.
