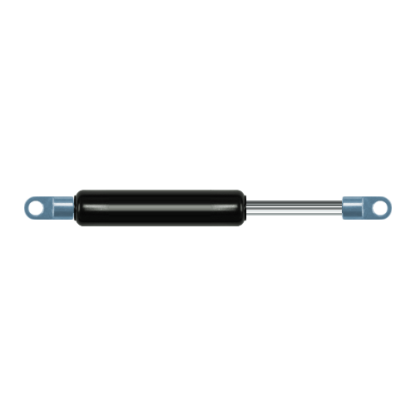

Replacement for Stabilus Lift-O-Mat 191752 0100N

$35.25




Replacement gas spring for the Stabilus Lift-O-Mat 191752 0100N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as CA191752.
Stabilus Lift-O-Mat 191752
AX16


This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The stroke of the gas spring is 40 millimeter. In total, the length is 144 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 112 millimeter. The force of this replacement gas spring is 100 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are almost entirely equal.
