Replacement for Stabilus Lift-O-Mat 167452 0450N
Replacement gas spring for the Stabilus Lift-O-Mat 167452 0450N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.
The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as CA167452.

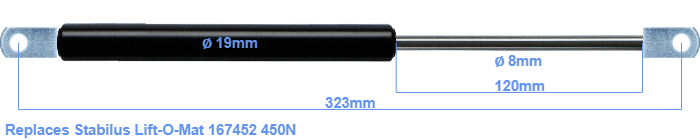

The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The chrome part is called the rod. It has a length of 120 mm. The total length of this replacement is exactly 323 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 285 millimeter. The force of this replacement is 450 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
