Replacement for Stabilus Lift-O-Mat 150344 0250N

$35.79




Replacement gas spring for the Stabilus Lift-O-Mat 150344 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA150344.
Stabilus Lift-O-Mat 150344
WG20
elbow ball removal

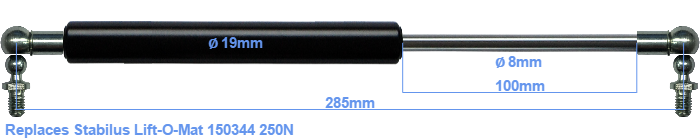

This gas spring has a cylinder diameter of 19 mm. The diameter of the rod is 8 millimeter. The stroke is 100 millimeter long. The total length of this replacement is 285 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 245 mm. This replacement gas spring (150344) has a force of 250 Newton (N). This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the force and dimensions equal.
