Replacement for Stabilus Lift-O-Mat 1395DP 0200N

$36.56

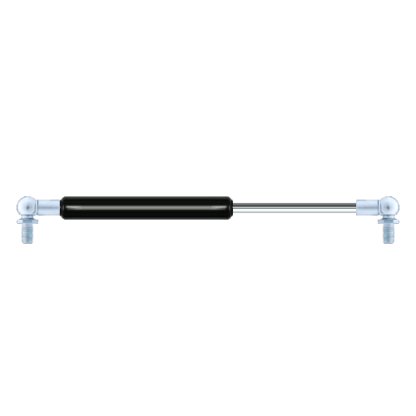

Replacement gas spring for the Stabilus Lift-O-Mat 1395DP 0200N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA1395DP.
Stabilus Lift-O-Mat 1395DP
WX22
elbow ball removal

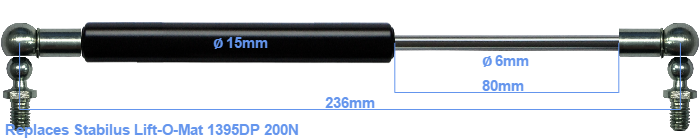

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod is 6 millimeter. The stroke is 80 millimeter long. The total length of this gas strut is 236 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. The force of this replacement gas spring is 200 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
