Replacement for Stabilus Lift-O-Mat 1354KQ 0600N

$51.51

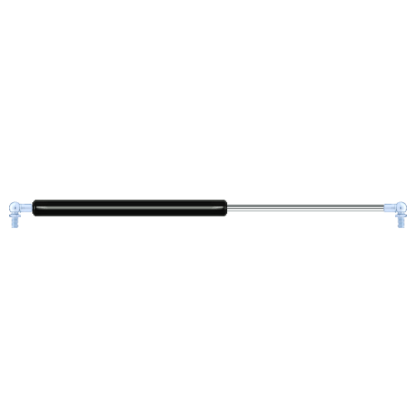

Replacement gas spring for the Stabilus Lift-O-Mat 1354KQ 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as CA1354KQ.
WG20
elbow ball removal

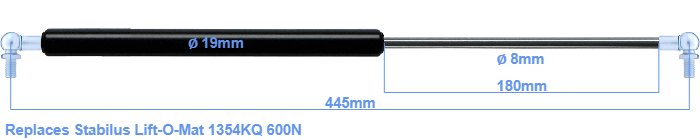

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The stroke of the gas spring is 180 millimeter. The total length of this gas strut is 445 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). The force of this replacement gas spring is 600 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions equal.
