Replacement for Stabilus Lift-O-Mat 108519 0600N

$42.45




Replacement gas spring for the Stabilus Lift-O-Mat 108519 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA108519.
Stabilus Lift-O-Mat 108519
WG20
elbow ball removal

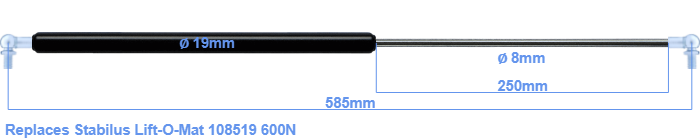

This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this gas strut is 585 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). This replacement gas spring (108519) has a force of 600 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
