Replacement for Stabilus Lift-O-Mat 1038YA 0150N
$40.97
Replacement gas spring for the Stabilus Lift-O-Mat 1038YA 0150N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.
View this gas spring in our configurator. This gas spring is also known as CA1038YA.

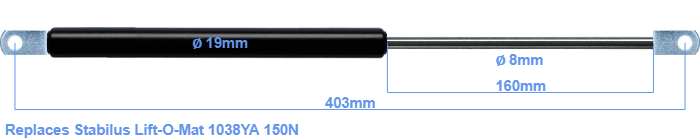

The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The rod (the chrome part) is 160 mm long. The total length of this replacement is exactly 403 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 365 mm long (thread to thread). This replacement gas spring has a force of 150 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions almost equal.
