Replacement for Stabilus Lift-O-Mat 095389 0300N
$48.88
Replacement gas spring for the Stabilus Lift-O-Mat 095389 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as CA095389.

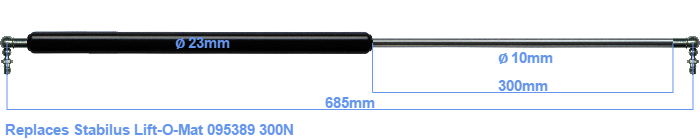

The diameter of the cylinder of this gas spring is 23 mm. The cross section of the rod is 10 mm. The chrome part is called the rod. It has a length of 300 mm. The total length of this replacement is exactly 685 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 645 mm. The force of this replacement gas spring is 300 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions almost equal.
