Replacement for Stabilus Lift-O-Mat 095362 0200N
$48.88
Replacement gas spring for the Stabilus Lift-O-Mat 095362 0200N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as CA095362.

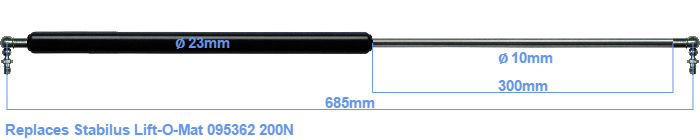

The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod totals 10 mm. The rod (the chrome part) is 300 mm long. The total length of this replacement is 685 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring (095362) has a force of 200 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions almost equal.
