Replacement for Stabilus Lift-O-Mat 095052 0250N

$43.06



Replacement gas spring for the Stabilus Lift-O-Mat 095052 0250N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 095052 0250N quantity

Add to basket

This gas spring is also known as CA095052.

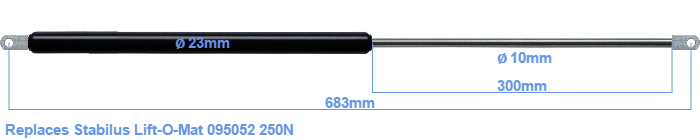

This gas spring has a cylinder diameter of 23 mm. The rod has a diameter of 10 mm. The stroke is 300 millimeter long. The total length of this replacement is exactly 683 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring has a force of 250 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions close to equal.
