Replacement for Stabilus Lift-O-Mat 094927 0800N
Replacement gas spring for the Stabilus Lift-O-Mat 094927 0800N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.
The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as CA094927.

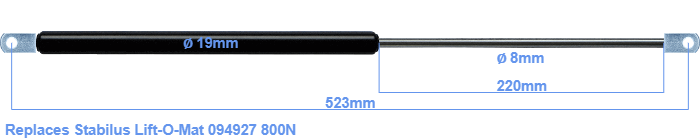

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The chrome part is called the rod. It has a length of 220 mm. The total length of this replacement is exactly 523 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). The force of this replacement gas spring is 800 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
